Hex bolt(Full thread(HF(HiranoF Steel Zinc plated(Silver) 24X150 Pitch 3.0
 |
●Screws to be used together with this nut. JCB-A (Hex socket Murakoshi) |

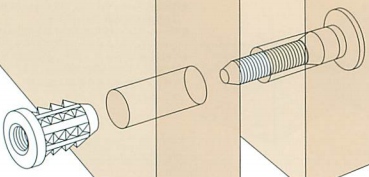

| ●Used by inserting into areas where the component strength is low and a female thread cannot be formed. ●The insertion method is screw-in type. ●This is a flanged drive-in insert nut based on the Type A design, providing a secure grip. ●The flange incorporates the function of a flat washer, making it suitable for clamping soft materials and thin members. It can also be used on the reverse side where access by hand is not possible. Oni-me Nut Type B Pull-out Strength |
|
Source: Murakoshi Seiko Co., Ltd.
Product Details
- Hex bolt Full HF Hirano F
- Nominal diameter (d): M24
- Length under head (L): 150.0
- Pitch: 3.0
- Hex width across flats (s) Nominal: 36
- Head height (k) Nominal: 15
Hex bolt(Full thread(HF(HiranoF Steel Zinc plated(Silver) 24X150 Pitch 3.0
| Steel | Zinc plated(Silver) | 24X150 | View Details |
|---|
Hex bolt(Full thread(HF(HiranoF Steel Zinc plated(Silver) 24X150 Pitch 3.0 - Surface Finish Variants
| Material | Surface Treatment | Size | Individual Sale | View Details |
|---|---|---|---|---|
| Steel | Unplated | 24X150 | View Details | |
| Steel | Chromate(Ochre) | 24X150 | View Details | |
| Steel | Hot-dip galvanized(Gray) | 24X150 | View Details |
